Product Summary

The AM29LV640MB-110REI is a 64 Mbit, 3.0 volt single power supply flash memory device organized as 4,194,304 words or 8,388,608 bytes. The AM29LV640MB-110REI has an 8-bit/16-bit bus and can be programmed either in the host system or in standard EPROM programmers. An access time of 90, 100, 110, or 120 ns is available. Note that each access time has a specific operating voltage range (VCC) and an I/O voltage range (VIO), as specified in Product Selector Guide on page 6 and Ordering Information on page 10. The AM29LV640MB-110REI is offered in a 48-pin TSOP, 63-ball Fine-pitch BGA or 64-ball Fortified BGA package. Each device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.

Parametrics

AM29LV640MB-110REI absolute maximum ratings: (1)Storage temperature plastic packages: -65℃ to +150℃; (2)Ambient temperature with power applied: -65℃ to +125℃; (3)Voltage with respect to ground VCC: -0.5 V to +4.0 V; VIO: 0.5 V to +4.0 V; A9, OE#, ACC, and RESET#: -0.5 V to +12.5 V; All other pins: -0.5 V to VCC +0.5 V; (4)Output short circuit current: 200 mA.

Features

AM29LV640MB-110REI features: (1)Program Suspend & Resume: read other sectors before programming operation is completed; (2)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (3)Data# polling & toggle bits provide status; (4)Unlock Bypass Program command reduces overall multiple-word programming time; (5)CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; (6)Sector Group Protection: hardware-level method of preventing write operations within a sector group; (7)Temporary Sector Unprotect: VID-level method of changing code in locked sectors; (8)WP#/ACC input: Write Protect input (WP#) protects top or bottom two sectors regardless of sector protection settings ACC (high voltage) accelerates programming time for higher throughput during system production; (9)Hardware reset input (RESET#) resets device; (10)Ready/Busy# output (RY/BY#) indicates program or erase cycle completion.

Diagrams

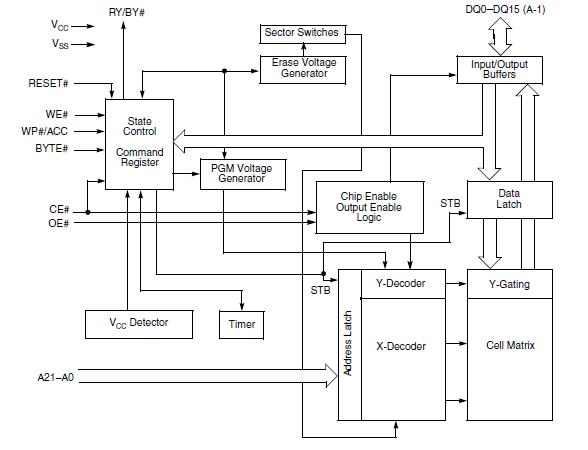

AM29LV640MB-110REI block diagram
