The MTD1361F is a stepper motor driver.
Parametrics
MTD1361F absolute maximum ratings: (1)Logic input voltage: -0.3 to 6V; (2)DMOS output breakdown voltage: 68V; (3)Flywheel diode voltage: 68V; (4)Output current: 1.2A; (5)Flywheel diode current: 1.2A; (6)Power dissipation: 5W; (7)Junction temperature range: 150℃; (8)Strage temperature range: -40 to 150 ℃.
Features
MTD1361F features: (1)Unipolar drive system; (2)DMOS output (low loss and low generation of heat); (3)TTL and CMOS compatible gate; (4)4-phase input (simultaneous ON prevention function); (5)Constant current control; (6)Integrated flywheel diodes and no external Zener diode needed; (7)Surface mount type package with heatsink (HSOP28).

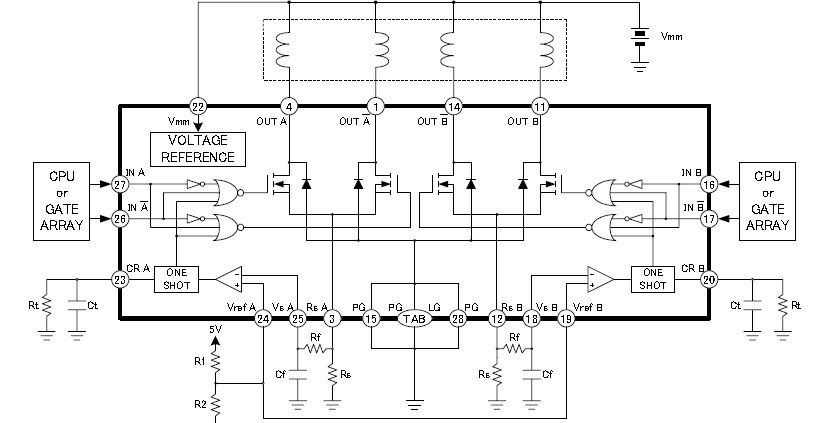

Diagrams
