Product Summary

The S29GL064N90TFI040 is a 3.0-Volt single-power Flash memory manufactured using 110 nm MirrorBit technology. The device is a 64-Mb device organized as 4,194,304 words or 8,388,608 bytes. Depending on the
model number, the S29GL064N90TFI040 has 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The device can be programmed either in the host system or in standard EPROM programmers.

Parametrics

Absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃ ; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V; A9, OE#, ACC and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

Features: (1)Software features: Advanced Sector Protection: offers Persistent Sector Protection and Password Sector Protection; Program Suspend & Resume: read other sectors before programming operation is completed; Erase Suspend & Resume: read/program other sectors before an erase operation is completed; Data# polling & toggle bits provide status; CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; Unlock Bypass Program command reduces overall multiple-word programming time; (2)Hardware features: WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings on uniform sector models; Hardware reset input (RESET#) resets device; Ready/Busy# output (RY/BY#) detects program or erase cycle completion.

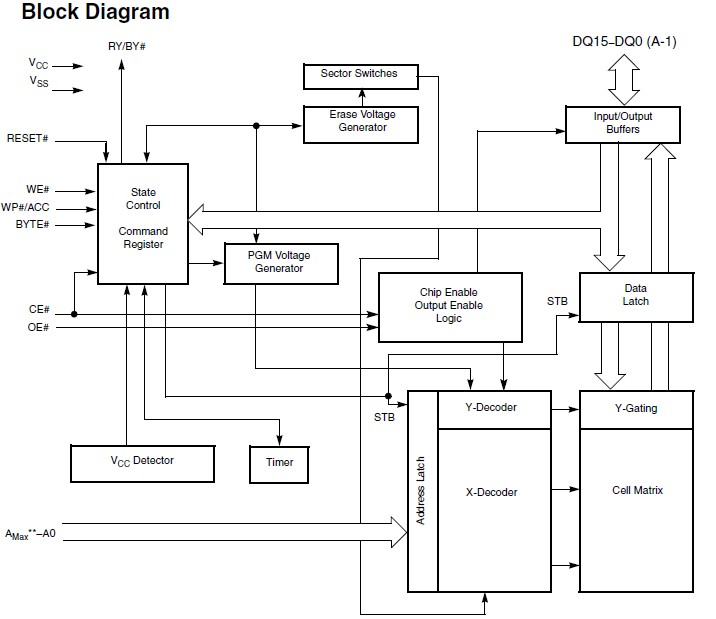

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S29GL064N90TFI040
S29GL064N90TFI040

Spansion

Flash 3V 64Mb Float Gate highest address 90s

Data Sheet

0-1: $0.88
1-25: $0.85
25-100: $0.83
100-250: $0.81
