Product Summary

The HD6417750RBP200 is a 32-bit RISC (reduced instruction set computer) microprocessor, featuring object code upward-compatibility with SH-1, SH-2, and SH-3 microcomputers. The HD6417750RBP200 includes an instruction cache, an operand cache with a choice of copy-back or write-through mode, and an MMU (memory management unit) with a 64-entry fully-associative unified TLB (translation lookaside buffer). The HD6417750RBP200 has a 16-kbyte instruction cache and a 32-kbyte data cache.

Parametrics

HD6417750RBP200 absolute maximum ratings: (1)I/O, PLL, RTC, CPG power supply voltage, VDDQ: –0.3 to 4.2, –0.3 to 4.2 V; (2)Internal power supply voltage, VDD: –0.3 to 2.5, –0.3 to 2.1 V; (3)Input voltage, Vin: –0.3 to VDDQ + 0.3 V; (4)Operating temperature, Topr: –20 to 75, –40 to 85 ℃; (5)Storage temperature, Tstg: –55 to 125 ℃.

Features

HD6417750RBP200 features: (1)General register file: Sixteen 32-bit general registers (and eight 32-bit shadow registers); Seven 32-bit control registers; Four 32-bit system registers; (2)RISC-type instruction set (upward-compatible with SH Series): Fixed 16-bit instruction length for improved code efficiency; Load-store architecture; Delayed branch instructions; Conditional execution; C-based instruction set; (3)Superscalar architecture (providing simultaneous execution of two instructions) including FPU; (4)Instruction execution time: Maximum 2 instructions/cycle; (5)Virtual address space: 4 Gbytes (448-Mbyte external memory space); (6)Space identifier ASIDs: 8 bits, 256 virtual address spaces; (7)On-chip multiplier; (8)Five-stage pipeline.

Diagrams

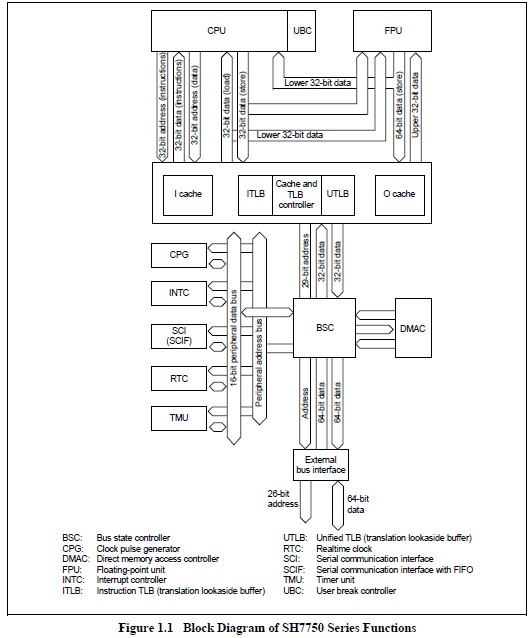

HD6417750RBP200 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HD6417750RBP200
HD6417750RBP200

Renesas Technology America

IC SUPERH MPU ROMLESS 256BGA

Data Sheet

Negotiable
HD6417750RBP200D
HD6417750RBP200D


IC SH7750R MPU ROMLESS 256-BGA

Data Sheet

Negotiable
HD6417750RBP200V
HD6417750RBP200V


MPU 1.5/3.3V 0K PB-FREE 256-BGA

Data Sheet

0-1: $25.30
