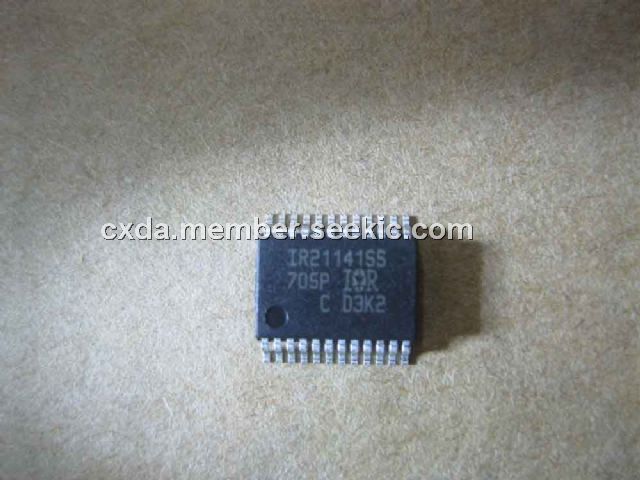

Product Summary
The IR21141SSPBF gate driver is suited to drive a single half bridge in power switching applications. The driver provides high gate driving capability (2 A source, 3 A sink) and require low quiescent current, which allows the use of bootstrap power supply techniques in medium power systems. The IR21141SSPBF features full short circuit protection by means of power transistor desaturation detection and manage all half-bridge faults by smoothly turning off the desaturated transistor through the dedicated soft shutdown pin, therefore preventing over-voltages and reducing electromagnetic emissions.
Parametrics
Absolute maximum ratings: (1)VS, High side offset voltage: VB - 25 to VB + 0.3 v; (2)VB, High side floating supply voltage: -0.3 to 625 v; (3)VHO, High side floating output voltage (HOP, HON and SSDH): VS - 0.3 to VB + 0.3 v; (4)VCC, Low side and logic fixed supply voltage: -0.3 to 25v; (5)COM, Power ground: VCC - 25 to VCC + 0.3 v; (6)VLO, Low side output voltage (LOP, LON and SSDL): VCOM -0.3 to VCC + 0.3; (7)VIN, Logic input voltage (HIN, LIN and FLT_CLR): -0.3 to VCC + 0.3 v; (8)VFLT, Fault input/output voltage (FAULT/SD and SY_FLT): -0.3 to VCC + 0.3 v; (9)VDSH, High side DS input voltage: VS -3 to VB + 0.3; (10)VDSL, Low side DS input voltage: VCOM -3 to VCC + 0.3 V; (11)dVs/dt, Allowable offset voltage slew rate: 50 V/ns max; (12)PD, Package power dissipation @ TA ≤25 ℃ : 1.5 W max; (13)RthJA, Thermal resistance, junction to ambient: 65 ℃/W max; (14)TJ, Junction temperatur: 150℃ max; (15)TS Storage temperature: -55 to 150 ℃; (16)TL, Lead temperature (soldering, 10 seconds): 300℃ max.
Features
Features: (1)Floating channel up to 600 V or 1200 V; (2)Soft over-current shutdown; (3)Synchronization signal to synchronize shutdown with the other phases; (4)Integrated desaturation detection circuit; (5)Two stage turn on output for di/dt control; (6)Separate pull-up/pull-down output drive pins; (7)Matched delay outputs; (8)Undervoltage lockout with hysteresis band; (9)Lead free.

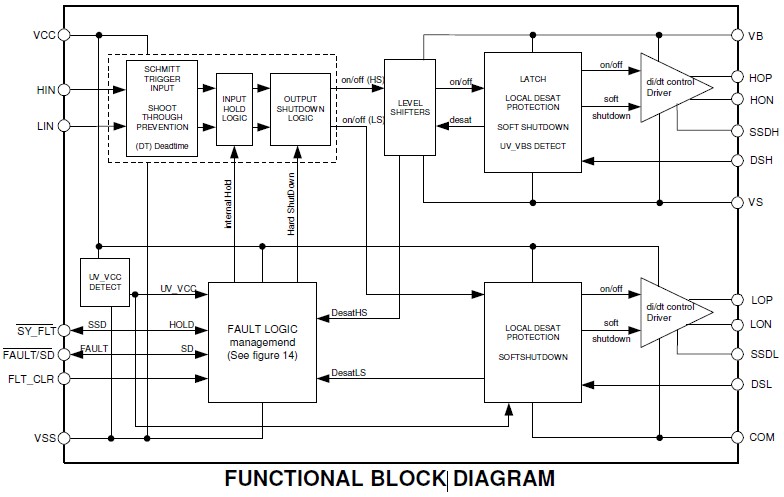

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IR21141SSPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
|||||||||||||
