Product Summary

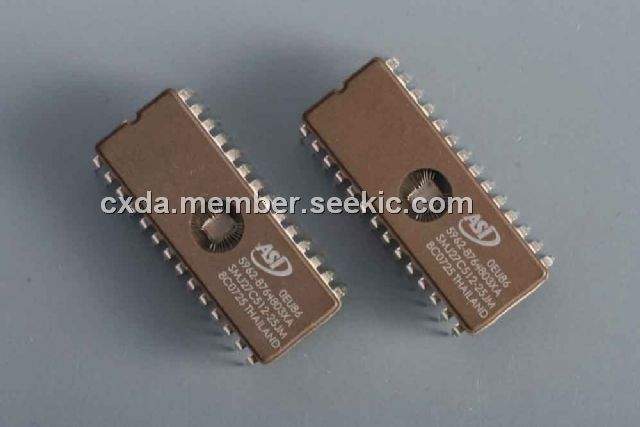

The SMJ27C512-25JM is a set of 65536 by 8-bit (524,288-bit), ultraviolet (UV) light erasable, electrically programmable read-only memories. These devices are fabricated using power-saving CMOS technology for high speed and simple interface with MOS and bipolar circuits. All inputs (including program data inputs can be driven by Series 54 TTL circuits without the use of external pullup resistors. Each output can drive one Series 54 TTL circuit without external resistors. The data outputs are 3-state for connecting multiple devices to a common bus. The SMJ27C512-25JM is pin-compatible with existing 28-pin 512K ROMs and EPROMs.
Parametrics
Absolute maximum ratings:(1)Supply voltage range, VCC: –0.6V to 7V; (2)Supply voltage range, VPP: –0.6V to 14V; (3)Input voltage range, All inputs except A9: –0.6V to VCC+1V; (4)Output voltage range: –0.6V to VCC+1V; (5)Operating free-air temperature range: 0℃ to 70℃; (6)Storage temperature range, Tstg: –65℃ to 150℃.
Features
Features:(1)Organized 65,536 x 8; (2)High-reliability MIL-PRF-38535 processing; (3)Single +5V ±10% power supply; (4)Pin-compatible with existing 512K read-only memories (ROMs) and electrically programmable ROMs (EPROMs); (5)All inputs/outputs fully TTL compatible; (6)Power-saving CMOS technology; (7)Very high-speed SNAP! Pulse Programming; (8)3-state output buffers; (9)400mV minimum DC noise immunity with standard TTL loads; (10)Latchup immunity of 250mA on all input and output lines; (11)Low power dissipation (CMOS input levels).

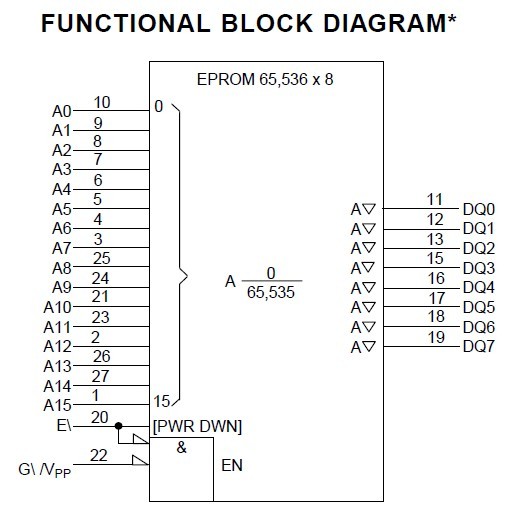

Diagrams
 |
