Product Summary

The K6E0804C1E-JC15 is a 262,144-bit high-speed Static Random Access Memory organized as 65,536 words by 4 bits. The K6E0804C1E-JC15 uses 4 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG’s advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The K6E0804C1E-JC15 is packaged in a 300 mil 28-pin plastic SOJ .

Parametrics

K6E0804C1E-JC15 absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS, VIN, VOUT: -0.5 to 7.0 V; (2)Voltage on VCC Supply Relative to VSS, VC:C -0.5 to 7.0 V; (3)Power Dissipation, PD: 1.0 W; (4)Storage Temperature, TSTG: -65 to 150℃; (5)Operating Temperature, TA: 0 to 70℃.

Features

K6E0804C1E-JC15 features: (1)Fast Access Time 10,12,15ns(Max.); (2)Low Power Dissipation; (3)Single 5.0V±10% Power Supply; (4)TTL Compatible Inputs and Outputs; (5)I/O Compatible With 3.3V Device; (6)Fully Static Operation; (7)Three State Outputs; (8)Standard Pin Configuration.

Diagrams

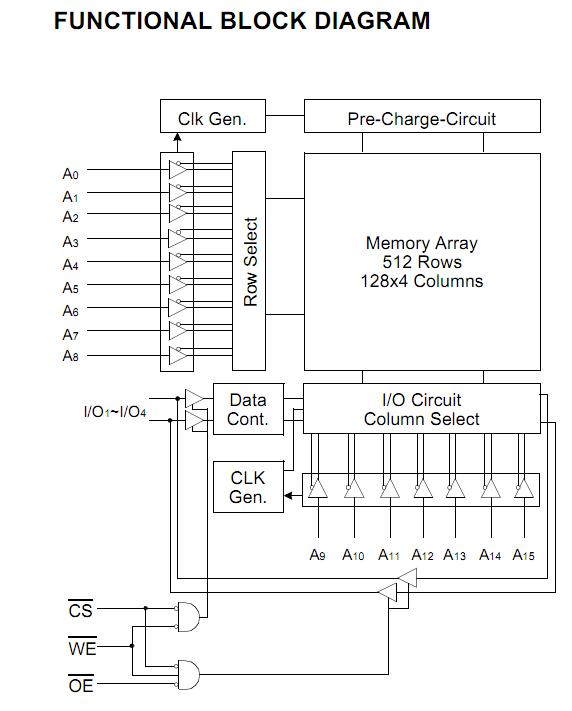

K6E0804C1E-JC15 functional block diagram
