Product Summary

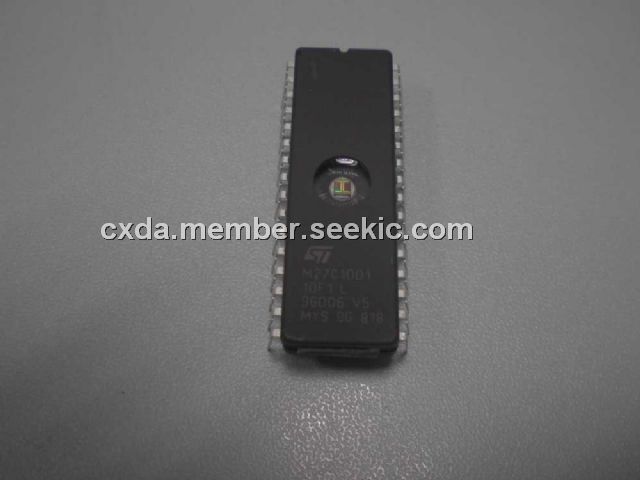

The M27C1001-10F1 is one member of the 1 Mbit (128Kb x 8) UV EPROM and OTP EPROM device that can be used in applications where fast turn-around and pattern experimentation are important requirements. Also this device is available in PDIP28, PLCC32 and TSOP28 (8 x 13.4 mm) packages. The FDIP32W (window ceramic frit-seal package) has a transparent lid that enables the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
Parametrics
Absolute maximum ratings:(1)Ambient operating temperature:–40 to 125 ℃;(2)Temperature under bias:–50 to 125 ℃;(3)Storage temperature:–65 to 150 ℃;(4)Input or output voltage (except A9):–2 to 7 V;(5)Supply voltage:–2 to 7 V;(6)A9 voltage:–2 to 13.5 V;(7)Program supply voltage:–2 to 14 V.
Features
Features:(1)5 V +/- 10% supply voltage in Read operation; (2)Access time: 55 ns; (3)low Power Consumption: Active current: 30 mA at 5 MHz and Standby current: 100 uA; (4)Programming voltage: 12.75 V +/- 0.25 V; (5)Programming time: 100 us/word; (6)Electronic signature: Manufacturer code: 20h and Device code: 05h; (7)ECOPACKR packages available.

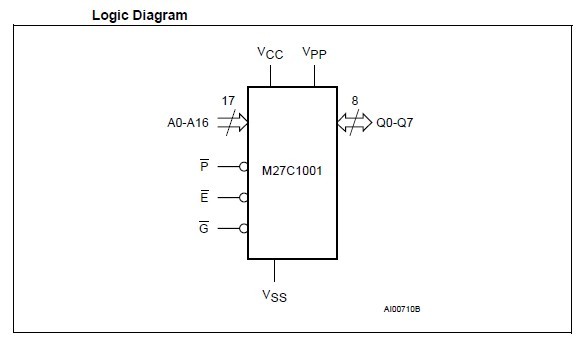

Diagrams
