Product Summary
The M27C2001-12F1 is one member of the M27C2001 family which is designed as the 2 Mbit (256Kb x 8) UV EPROM and OTP EPROM. And it is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 by 8 bits. Also this device is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
Features:(1)5V ± 10% supply voltage in read operation; (2)fast access time: 55ns; (3)low power consumption: active current 30mA at 5MHz and standby current 100mA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100ms/byte (typical); (6)electronic signature: manufacturer code: 20h and device code: 61h.
Features
Absolute maximum ratings:(1)Ambient Operating Temperature:–40 to 125 ℃;(2)Temperature Under Bias:–50 to 125 ℃;(3)Storage Temperature:–65 to 150 ℃;(4)Input or Output Voltage (except A9):–2 to 7 V;(5)Supply Voltage:–2 to 7 V;(6)A9 Voltage:–2 to 13.5 V;(7)Program Supply Voltage:–2 to 14 V.

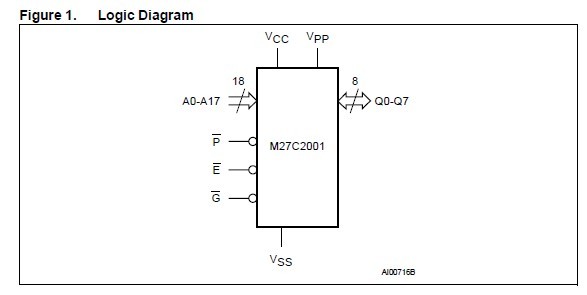

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C2001-12F1 |
STMicroelectronics |
EPROM 2M (256Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
