SST55LD019M-45-C-MVWE

SST55LD019M-45-C-MVWE, ATA Flash Disk Controller, 0.5V, 1.0W, 50 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~3.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.90~3.10

PartNumber:: SST55LD019M-45-C-MVWE

Brand:: Silicon Storage Technology, Inc - SST | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Constance's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-17

From Other Seller

Part Number:SST55LD019M-45-C-MVWE
US $2.90 - 3.10
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

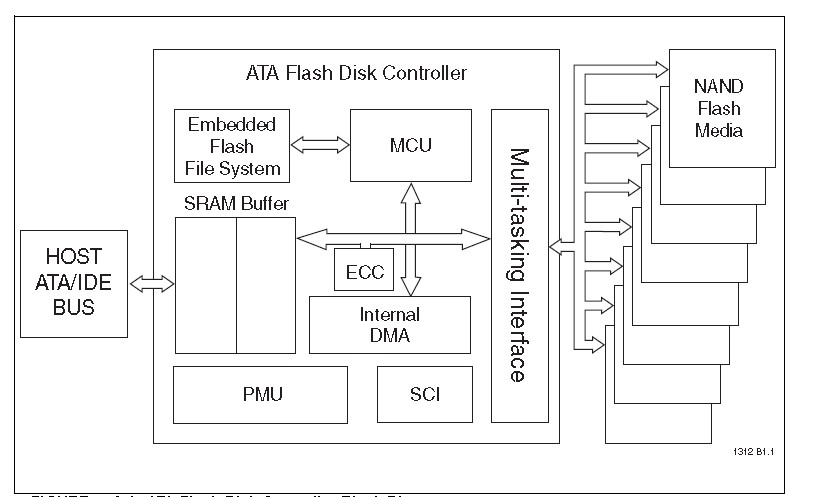

The SST55LD019M-45-C-MVWE is an ATA Flash Disk Controller. The SST55LD019M-45-C-MVWE is the heart of a highperformance,flash media-based data storage system. The SST55LD019M-45-C-MVWE recognizes the control, address, and data signals on the ATA/IDE bus and translates them into memory accesses to the standard NANDtype flash media. The SST55LD019M-45-C-MVWE supports Multi-Level Cell (MLC) and high density Single-Level Cell (SLC) flash media. This technology suits solid state mass storage applications offering new, expanded functionality while enabling smaller, lighter designs with lower power consumption.

Parametrics

SST55LD019M-45-C-MVWE absolute maximum ratings: (1)Temperature Under Bias: -55°C to +125°C; (2)Storage Temperature: -65°C to +150°C; (3)D.C. Voltage on Pins1 I3, I4, O4, and O5 to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Pins1 I3, I4, O4, and O5 to Ground Potential: -2.0V to VDD+2.0V; (5)D.C. Voltage on Pins1 I1, I2, O1, O2, and O6 to Ground Potential: -0.5V to VDDQ+0.5V; (6)Transient Voltage (<20 ns) on Pins1 I1, I2, O1, O2, and O6 to Ground Potential: -2.0V to VDDQ+2.0V; (7)Package Power Dissipation Capability (TA = 25°C): 1.0W; (8)Through Hole Lead Soldering Temperature (10 Seconds): 300°C; (9)Surface Mount Solder Reflow Temperature: 260°C for 10 seconds; (10)Output Short Circuit Current2: 50 mA.

Features

SST55LD019M-45-C-MVWE features: (1)Industry Standard ATA/IDE Bus Interface: Host Interface: 8- or 16-bit access; Supports up to PIO Mode-4; Supports up to Multi-word DMA Mode-2; (2)Interface for standard NAND Flash Media: Flash Media Interface: 8-bit or 16-bit access; (3)Low power, 3.3V core operation; (4)5.0V or 3.3V host interface through VDDQ pins; (5)Low current operation:Active mode: 25 mA/35 mA (3.3V/5.0V) (typical); Sleep mode: 40 μA/50 μA (3.3V/5.0V) (typical); (6)Power Management Unit: Immediate disabling of unused circuitry; (7)Expanded Data Protection:WP_PD pin configurable by firmware for prevention of data overwrites.
