Product Summary

The W83627EHF is a WINBOND LPC I/O. It features a whole new interface, namely LPC (Low Pin Count) interface, which will be supported in the new generation chip-set. The W83627EHF is fully transparent in terms of software which means no BIOS or device driver update is needed except chip-specific configuration. The W83627EHF provides two high-speed serial communication ports (UARTs), one of which supports serial Infrared communication.

Parametrics

W83627EHF absolute maximum ratings: (1)Power Supply Voltage (3.3V):-0.5 to 6.5V; (2)Input Voltage:-0.5 to VDD+0.5V; (3)RTC Battery Voltage:2.2 to 4.0V; (4)Operating Temperature:0 to +70℃; (5)Storage Temperature:-55 to +150℃.

Features

W83627EHF features: (1)Meet LPC Spec. 1.01; (2)Support LDRQ#(LPC DMA), SERIRQ (Serial IRQ); (3)Integrated Hardware Monitor functions; (4)Compliant with Microsoft PC2000/PC2001 Hardware Design Guide; (5)Support DPM (Device Power Management), ACPI; (6)Programmable configuration settings; (7)Single 24 or 48 MHz clock input; (8)It is 3.3V level but 5V tolerance support; (9)Compatible with IBM PC AT disk drive systems ; (10)Variable write pre-compensation with track selectable capability ; (11)Support vertical recording format ; (12)DMA enable logic ; (13)16-byte data FIFOs ; (14)Support floppy disk drives and tape drives ; (15)Detects all overrun and underrun conditions ; (16)Built-in address mark detection circuit to simplify the read electronics; (17)Support up to four 3.5-inch or 5.25-inch floppy disk drives ; (18)Completely compatible with industry standard 82077 ; (19)360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps data transfer rate ; (20)Support 3-mode FDD, and its Win95/98 driver.

Diagrams

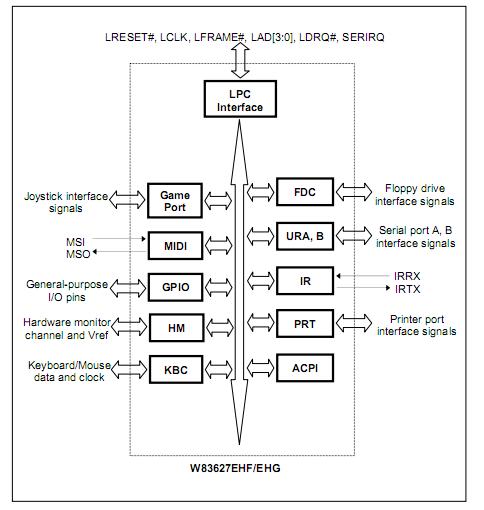

W83627EHF circuit diagram
