Product Summary

The KM732V589AG-15 is a 1048576 bit synchronous static random access memory designed for high performance second level cache of pentium and powe PC based system. The KM732V589AG-15 is organized as 32K words of 32 bits and integrates address and control registers, a 12-bit burst address counter and added some new functions for high performance cache RAM applications.

Parametrics

KM732V589AG-15 absolute maximum ratings: (1)voltage on VDD supply relative to VSS, VDD: -0.3 to 4.6V; (2)votlage on VDDQ supply relative to VSS, VDDQ: VDD; (3)voltage on input pin relative to VSS, VIN: -0.3 to 6.0V; (4)voltage on I/O pin relative to VSS, VIO: -0.3 to VDDQ+0.5V; (5)power dissipation, PD: 1.2W; (6)storage temperature, Tstg: -65 to 150℃; (7)operating temperature, Topr: 0 to 70℃; (8)storage temperature range under bias, Tbias: -10 to 85℃.

Features

KM732V589AG-15 features: (1)synchronous operation; (2)2 stage pipelined operation with 4 burst; (3)on-chip address counter; (4)self-timed write cycle; (5)on-chip address adn control registers; (6)VDD=3.5V-0.5%/+10% power supply; (7)5V tolerant inputs except I/O pins; (8)byte wirtable function; (9)global write enable controls a full bus-width write; (10)power down state via ZZ signal; (11)LBO pin allows a chice of either a interleaved burst or a linar burst; (12)three chip enables for simple depth expansion with no data contention; (13)asynchronous output enable control; (14)TTL level three state otuput; (15)100 pin QFP/TQFP package.

Diagrams

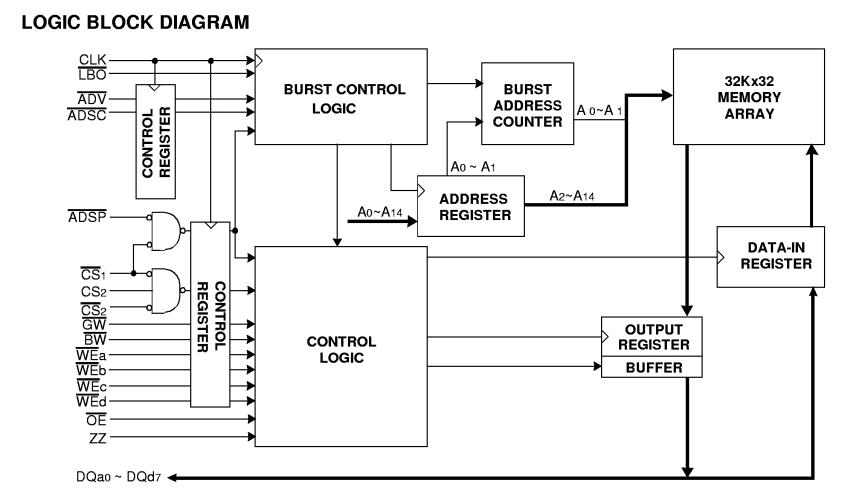

KM732V589AG-15 logic block diagram
