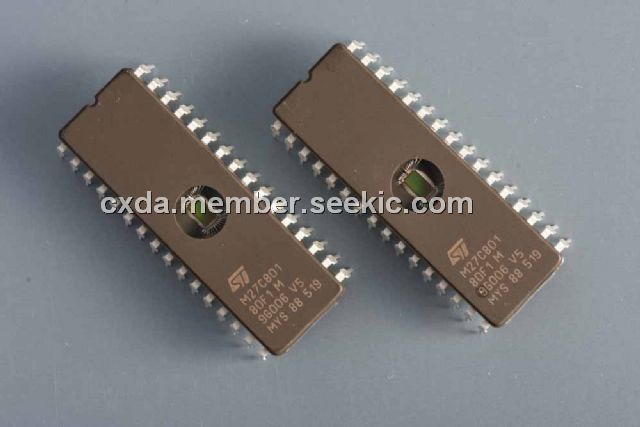

Product Summary
The M27C801-80F1 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8 bits. The FDIP32W (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern.A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C801 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
Absolute maximum ratings:(1)Ambient Operating Temperature, TA: –40 to 125℃; (2)Temperature Under Bias, TBIAS: –50 to 125℃; (3)Storage Temperature, TSTG: –65 to 150℃; (4)Input or Output Voltage (except A9), VIO: –2 to 7V ; (5)Supply Voltage, VCC: –2 to 7V ; (6)A9 Voltage, VA9: –2 to 13.5V ; (7)Program Supply Voltage, VPP: –2 to 14V.
Features
Features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: active current 35mA at 5MHz, standby current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 50μs/word; (6)manufacturer code: 20h; (7)device code: 42h.

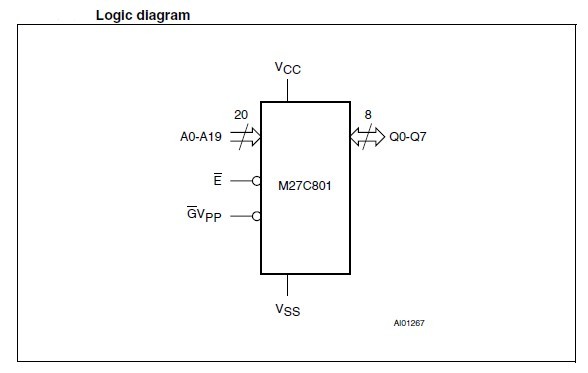

Diagrams
