Product Summary
The K6T4016C3C-TF70000 is a 256K×16 bit Low Power CMOS Static RAM. The device is fabricated by SAMSUNG’s advanced CMOS process technology. The K6T4016C3C-TF70000 supports various operating temperature ranges and small package types for user flexibility of system design. The K6T4016C3C-TF70000 also supports low data retention voltage for battery back-up operation with low data retention current.
Parametrics
K6T4016C3C-TF70000 absolute maximum ratings: (1)Voltage on any pin relative to Vss, VIN,VOUT: -0.5 to 7.0 V; (2)Voltage on Vcc supply relative to Vss, VCC: -0.5 to7.0 V; (3)Power Dissipation, PD: 1.0 W; (4)Storage temperature, TSTG: -65 to 150℃; (5)Operating Temperature, TA: 0 to 70℃.
Features
K6T4016C3C-TF70000 features: (1)Process Technology: TFT; (2)Organization: 256K×16; (3)Power Supply Voltage: 4.5~5.5V; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type: 44-TSOP2-400F/R.

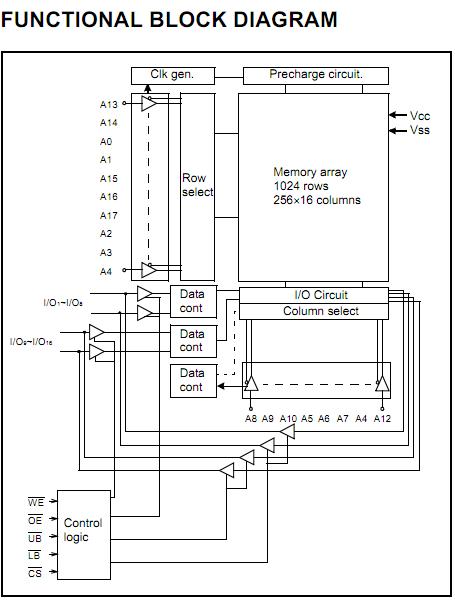

Diagrams
 |
