SAA7356HL

SAA7356HL, layer controller, 4.0 V, 50 mA, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~3.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.90~3.10

PartNumber:: SAA7356HL

Brand:: Philips Electronics India Limited - PHILIPS | Pack: QFP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Constance's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-17

From Other Seller

Part Number:SAA7356HL
US $2.90 - 3.10
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

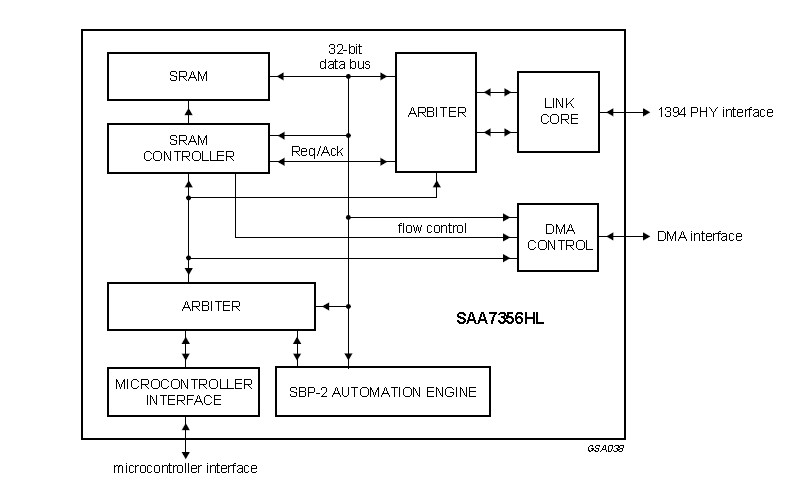

The SAA7356HL is an IEEE1394-1995 and P1394a compliant link layer controller featuring an embedded SBP-2 transaction layer for data storage applications. The SAA7356HL provides full automation of the SBP-2 transaction layer to an extent that the user need not have knowledge of SBP-2 or 1394.

Parametrics

SAA7356HL absolute maximum ratings: (1)VDD supply voltage :-0.5 to +4.0 V; (2)IIK input clamping diode current: 50 mA; (3)IOK output clamping diode current: ±50 mA; (4)VO output voltage: -0.5 to VDD + 0.5 V; (5)IO(source) output source current: ±150 mA; (6)IO(sink) output sink current: ±150 mA; (7)ISS - ICC VCC or GND current: ±150 mA; (8)Tstg storage temperature: -60 +150 ℃; (9)Tamb ambient temperature: 70 ℃.

Features

SAA7356HL features: (1)Institute of Electrical and Electronics Engineers (IEEE) 1394-1995 standard link layer controller; (2)Compatible with the P1394a standard; (3)Fully automated Serial Bus Protocol 2 (SBP-2) transaction layer for data storage applications; (4)Interface to many of the industry standard Direct Memory Access (DMA) protocols; (5)Interface to any IEEE1394-1995 or P1394a PHY layer interface; (6)Very low power comma mode; (7)Small package; (8)Single 3.3 V supply voltage with 5 V tolerance.
